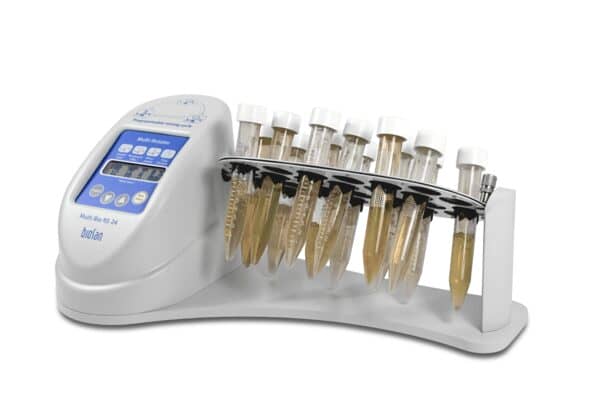

BioSan Bio RS-24 Mini Rotator

Programmable Rotator Multi Bio RS-24 performs different types of movement in one module. Microprocessor control allows not only vertical rotation (1) of the platform, but also reciprocating rotation (2) and vibration (3). These three move types can be performed individually, in pairs, and in cycles, with the sequence of three move types repeated periodically. The multi-rotation option of Biosan instruments greatly expands the capabilities and improves the sample preparation efficiency for the materials under investigation and allows the mixing procedure to be adapted to the individual tasks.

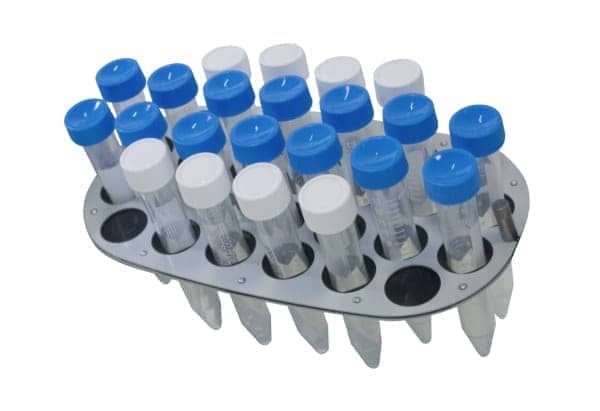

Includes platform for 26 tubes with a diameter of 10-16 mm (1.5-15 ml).

Programmable Rotator can be used in cold rooms or incubators, operating in an ambient temperature range of +4°C to +40°C. External low voltage power supply (12 V) ensures electrical safety in a humid environment.

Digital time setting 1 min–24 hrs / non–stop (increment 1 min)

Timer sound signal +

Vertical rotation speed control range 1-100 rpm (increment 1 rpm)

Vertical rotation movement overhead, 360°

Vertical rotation time setting range 0 – 250 sec

Maximum continuous operation time 168 h

Reciprocal rotation speed control range 1–100 rpm (increment 1 rpm)

Reciprocal rotation tilt angle range 1° – 90° (increment 1°)

Reciprocal rotation time setting range 0 – 250 sec

Vibro rotation tilt angle range 0° – 5° (increment 1°)

Vibro rotation Pause / Vibro time setting range 0 – 5 sec

Maximum load 0.5 kg

Overall dimensions (W×D×H) 365x195x155 mm
